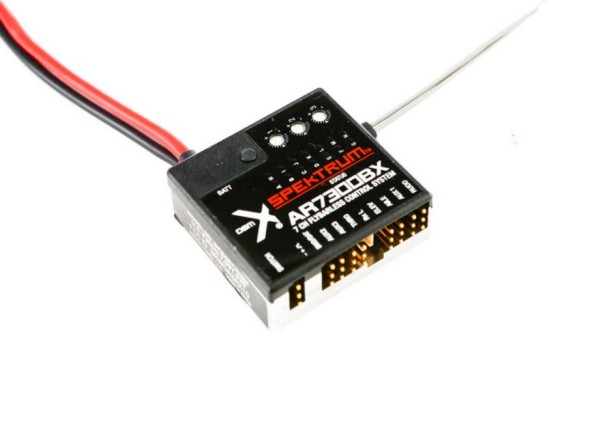

The Spektrum AR7200BX integrated seven channel DSMX receiver and flybarless controller is legendary for its rock solid flybarless controller and 2.4GHz DSMX receiver technologies. Spektrum is now releasing the AR7300BX, which also combines the security of a 7-channel, DSMX® receiver with the precision of a BeastX® flybarless system in a single, compact unit. No special programming interface is needed for setup and adjustment; all programming can be accomplished using a Spektrum DSM2 or DSMX transmitter (optional USB programmer available). An integrated power bus eliminates the need for external BEC regulators and can handle the demanding current loads of today’s high-voltage servos. The AR7300BX a great choice for high-powered 550- to 800-size electric helis and .50- to .90-size gas/nitro machines.
Key Features:
• Integrated BeastX® 3-axis MEMS gyro
• 11ms frame rate
• 2048 resolution
• Flight log telemetry-compatible
• DSMX® safety and control
• Perfect for 550- to 800-size electric & .50- to .90-size gas/nitro helis
Specifications:
Application: Heli (550- to 800 electric) & (.50 – .90 –size nitro/gas)
Channels: 7
Receivers: 1
Modulation: DSM2/DSMX
Band: 2.4GHz
Data Flight Log Compatible: Yes
Telemetry Compatible: Yes
Dimensions LxWxH: 36 x 38 x 13mm (1.40 x 1.50 x 0.50 in)
Weight: 30.9 g (1.10 oz)
Input Voltage: 3.5-9.6V
Resolution: 2048
Antenna Length: 100mm (3.9 in)
Range: Full
