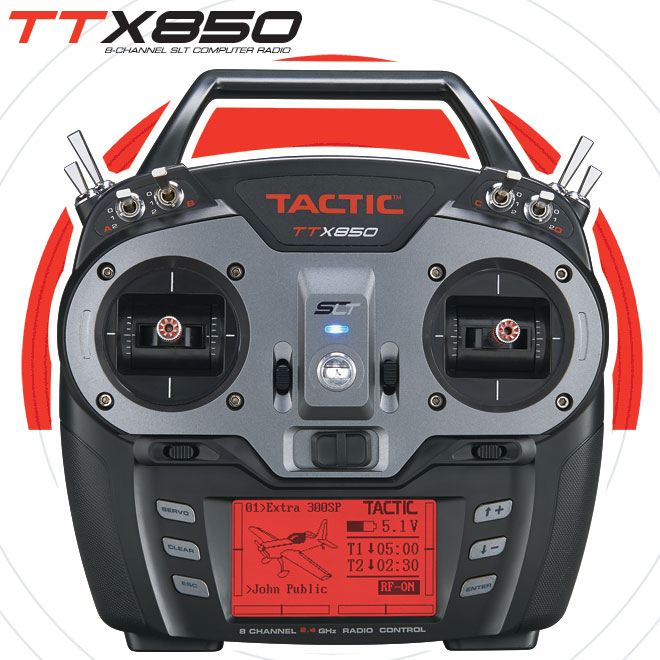

When Tactic released the TTX650 a couple years ago it quickly became a hit among people looking for a computerized radio with plenty of features but not a huge price tag. Fast forward to today and they just expanded their offerings with an 8 channel version with even more features but still keeping an attractive price point.
The TTX850 is not just a radio for beginners. With a wide range of Tactic receivers available, 30 model memory, 6 programmable mixes and function options preset for Airplane, Helicopter as well as multi-rotor aircraft this radio can handle just about any aircraft you can dream up. The easy to use push buttons and intuitive menu system round out the TTX850 as a no hassle radio system.
Features
- Airplane, helicopter and multi-rotor software
- Intuitive, straightforward menus
- Push-button programming
- 30-model memory
- Wireless trainer system and wired trainer system with 3.5 mm round jack
- Six programmable mixes
- Factory-programmed mixes including three swash mixes for helis and eight wing/tail configurations for fixed-wing aircraft
- User-selectable switch assignments
- Two sliding side levers, six 3-position switches and two 2-position switches
- Sticks with ultra-smooth quad-bearing gimbals, plus length and tension adjustments
- High-resolution, 256×160 red backlit graphing LCD with contrast and brightness adjustments
- Servo reversing, sub-trim and travel limits (all channels)
- Dual rates and exponential (aileron, elevator & rudder)
- Digital trims with slow/fast adjustment (aileron, elevator, rudder & throttle)
- Adjustable low-voltage alarm
- 4.8V 1000mAh NiMH transmitter battery
- AC wall charger with interchangeable U.S., UK & EU terminals
- Charge jack
- Internal antenna
- Compatible with all SLT receivers and Tx-R aircraft.
-
Transmitter Functions:
Model Select
Model Management (name, type, copy reset & wireless transfer)
Trim Settings
Ch5-Ch8 Assignment
Wired & Wireless Trainer Functions (with selectable channels)
Warnings (Rf on/off, low battery, throttle position, throttle cut, throttle hold, no signal & auto power-down)
Wired and wireless model copy function
Range Test
Fail-Safe with selectable channels (actually an Rx function)
Firmware updates (through built-in USB interface)
System Setup (user name, stick modes, LCD contrast, speaker volume, battery alarm, vibration intensity & LCD backlight)
-
Airplane Functions:
6 Programmable Mixes
8 Wing Types (normal, V-tail, delta, single aileron, dual aileron, aileron + flap, 2 aileron + flap & dual elevator)
Throttle Curve (12-point)
Throttle Cut
Advanced Gyro Gain
Aileron Mixing
Rudder Mixing
Aileron Differential
Flap Mixing
Air Brake Set
RF Output
Timers
Camera Gimbal
Digital Switch Assignment
-
Helicopter Functions:
6 Programmable Mixes
3 Swash Plate Types (1 servo; 2 servos/180°; or 3 servos/140°)
Throttle Curve (12-point)
Throttle Cut
Throttle Hold
Pitch Curve (12-point)
Pitch-Curve Hold
Advanced Gyro Gain
Swash Plate Ring
Throttle Mixing
Swash Plate Mixing
Cyclic Mixing
Rudder Mixing
RF Output
Timers
Camera Gimbal
Digital Switch Assignment
-
Multi-Rotor Functions:
6 Programmable Mixes
Throttle Curve (12-point)
Throttle Cut
Throttle Hold
Advanced Gyro Gain
RF Output
Timers
Camera Gimbal
Digital Switch Assignment
