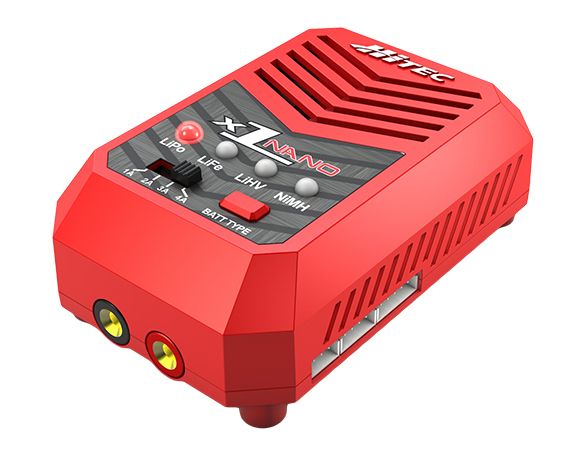

X1 Nano – Multi-chemistry Battery Charging Unit

x1nano-pr

Plug in and Charge! Hitec’s X1 Nano is the economical battery charging companion for all hobbyists. Simply plug in the AC power cord to a standard 100-240 volt outlet and you are ready to successfully charge all popular battery chemistries in a snap. With a charge circuit power of 50 watts, this mini charging unit is easy to operate, compact and efficient. Select your battery type and choose from four charge current settings with the press of a button. LED indicators show the charge status of your battery and make operation a breeze.

Charging Specifications:

• AC Input: 100 – 240 volts AC
• Battery Type / Cell Count: LiPo, LiFe and LiHV: 2 – 4 cell / NiMH: 6 – 8 cell
• Charge Circuit Power: 50 Watts
• Selectable Charge Currents: 1, 2, 3 or 4 Amps 10%
• Current Drain for LiPo Balancing: 300 mA per cell
• Cell Termination Voltage
• LiPo: 4.2V / LiFe: 3.6V and LiHV: 4.35V (±0.02V)
• NiMH: Delta Peak Voltage
• Net Weight: 6.6 oz (188g)
• Dimensions: 2.7 x 4.3 x 1.6 in (69.4 x 110.7 x 40.5mm)
